# 4 | L-shaped cofferdam | Support on a bridge pile

This is the typical installation for structures with one or more piers.

Start from the bank and go around the pier upstream, ensuring that you have:

  • a long enough barrier to ensure a watertight seal against the bridge pier
  • an opening between the supports wide enough for the dam to pass through

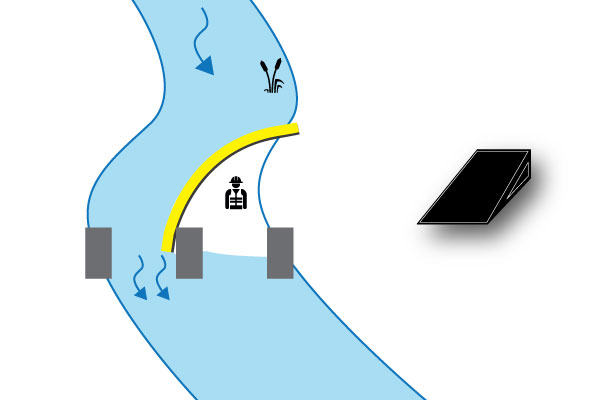

Batardeaux souples Water-Gate©. Schéma d'une installation en L avec appui sur une pile de pont. Cas #4

Depending on the slope and the force of the current, it may be necessary to set up a second installation downstream of the bridge.
In this case, do not go past the chosen pier. Attach the dam to the pier facing the starting bank.

Batardeaux souples Water-Gate©. Schéma d'une double installation en L amont et aval avec appui sur une pile de pont.Pente faible. Cas #4bis

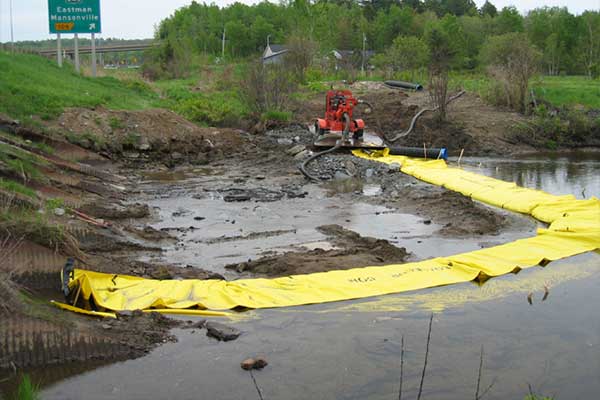

Travaux rivière. Batardeaux souples Water-Gate©. Installation en L à l'amont. Busage, dérivation d'un cours d'eau.
Travaux rivière. Batardeaux souples Water-Gate©. Installation en L à l'aval. Busage, dérivation d'un cours d'eau.
Travaux rivière. Batardeaux souples Water-Gate©. Busage, dérivation d'un cours d'eau.
