Project Description

How to close rainwater drains and pipes

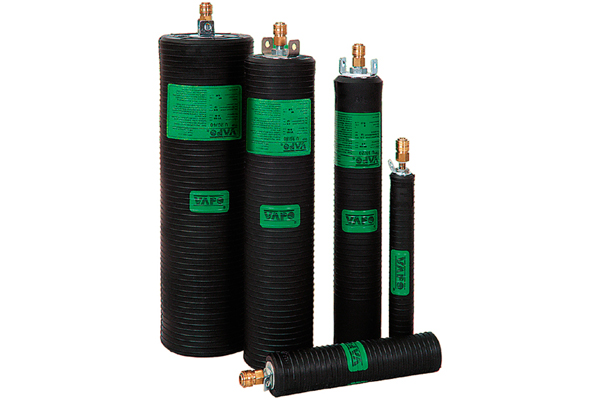

Inflatable pipe plugs

Inflatable rubber plugs are effective for fast, tight and reliable sealing of all buried pipes. The ranges of use vary by size.
Examples:
Deflated diameter 96 mm | Range of use 100 to 200 mm
Deflated diameter 135 mm | Range of use 150 to 300 mm
Deflated diameter 190 mm | Range of use 200 to 400 mm
Deflated diameter 290 mm | Range of use 300 to 600 mm
Deflated diameter 450 mm | Range of use 500 to 1000 mm

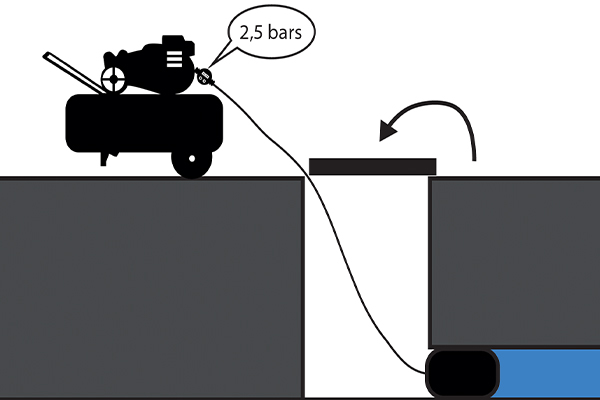

Inflation to 2.5 bars guarantees a back pressure of 1 bar.
Pipes and pressure gauges remain in place for the duration of the flooding in order to be able to regularly check the installation.
High durability, resistant to wastewater and temperatures from -30° C to 80° C.

Conical plugs

Polyurethane conical stoppers.
They perfectly match diameters between 35 and 230 mm.
Easy to use thanks to an unscrewable handling handle.
Allow complete blocking of small diameter pipes.
Be careful to use exclusively in the upstream => downstream direction.
Usage: replacing a non-return valve in a flood situation / replacing a shut-off valve in a fire water retention situation.

Options

SUPPLEMENTARY PRODUCTS

Perfectly adapted to the complementary ballasting of the Water-Gate © barriers: 15 KG / linear meter. Robust and easy to handle (three handles), they are easy to load and unload in water: polyethylene mesh.

SERIE WL-06: a pocket barrier for emergency deviations. Efficient and incredibly simple! WEGDE-Bag ©: a sealing wedge to be placed in line with the openings to limit leaks.

We pair our Water-Gate protection devices with the best aluminium solutions: narrow openings, support points for flexible barriers.

If the risk to underground networks is not dealt with, surface protection will be inadequate. MegaSecur.Europe studies the networks of the site to be protected and provides a solution tailored to each situation.

No mobile flood protection system is totally watertight. We provide pumping solutions to collect water that has seeped through and discharge it beyond the dam: self-priming motor pumps or submersible pumps coupled with generators.
