Flexible dams WL-06 Serie | WEDGE-Bag ©: waterproof wedge

WL-06 | Flexible Dams 15cm retention height with integrated weight

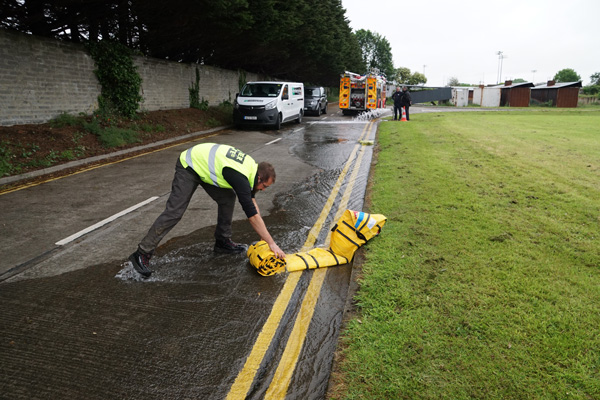

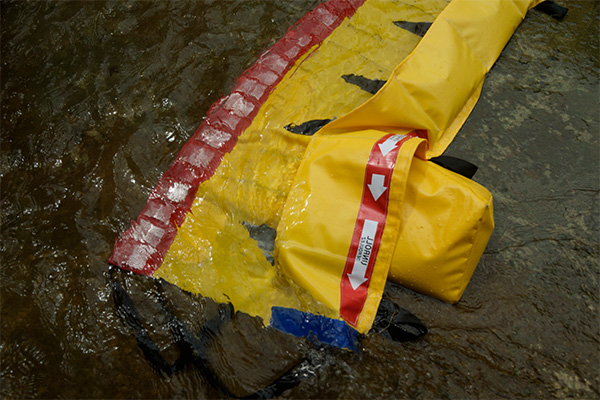

Delivered in duffel bag, the barrier is rolled on itself, the leading edge is already weighted.

WL 0617 (15 cm x 5,2 m) :

  • Maximum water retention height: 15 cm
  • Protection length: 5,2 m
  • Width (depth of ground surface):60 cm
  • Packaging: W 42cm x L 30cm x H 28cm
  • Weight: 14,0 kg

WL 0630 (15 cm x 9,1 m) :

  • Maximum water retention height: 15 cm
  • Protection length: 9.1 m
  • Width (depth of ground surface):60 cm
  • Packaging: W 40 cm x L 38 cm x H 28 cm
  • Weight: 19.4 kg

WL 0650 (15 cm x 15,2 m) :

  • Maximum water retention height: 15 cm
  • Protection length: 15,2 m
  • Width (depth of ground surface): 60 cm
  • Packaging: W 42cm x L 30cm x H 28cm
  • Weight: 29,8 kg

WEDGE-Bag ©: waterproof wedge

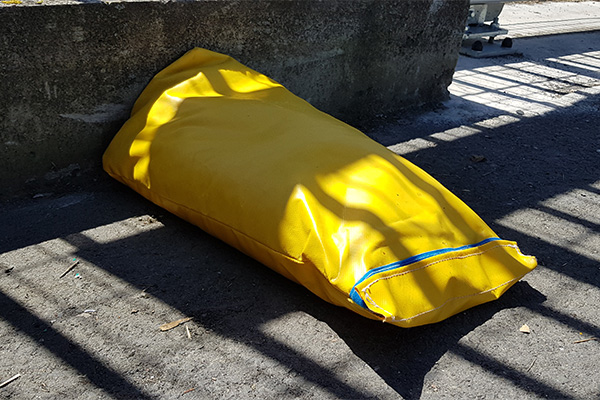

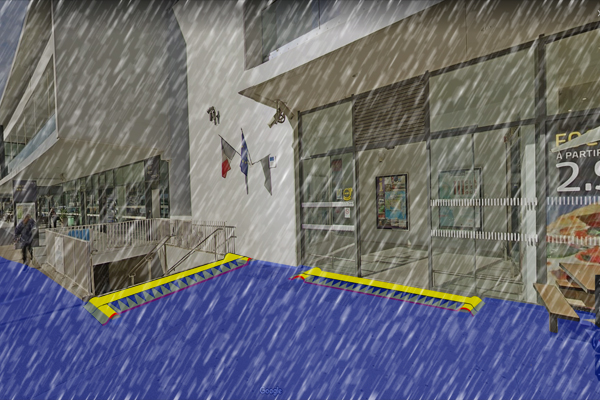

The Wedge-Bags © are prism-shaped PVC gravel bags with handle, to be placed on both sides of the openings that must be protected.

  • PVC bag delivered flat, to be filled with gravel.

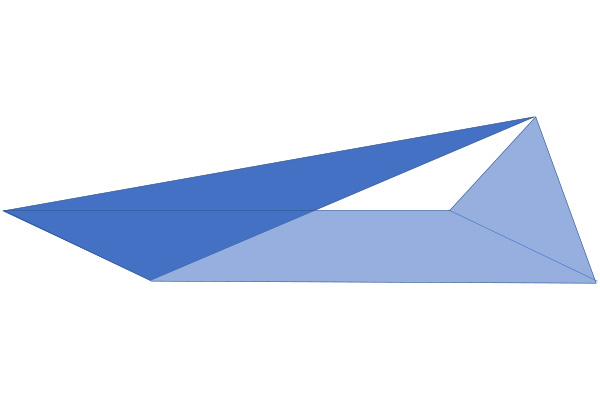

  • Triangular truncated prism (Base 90cm x 30cm | Height wall side 15cm).
  • Capacity 25 liters.
  • Velcro closure.

Options

SUPPLEMENTARY PRODUCTS

Log-shaped ballast | Gravel

Perfectly adapted to the complementary ballasting of the Water-Gate © barriers: 15 KG / linear meter. Robust and easy to handle (three handles), they are easy to load and unload in water: polyethylene mesh.

Express protection kit

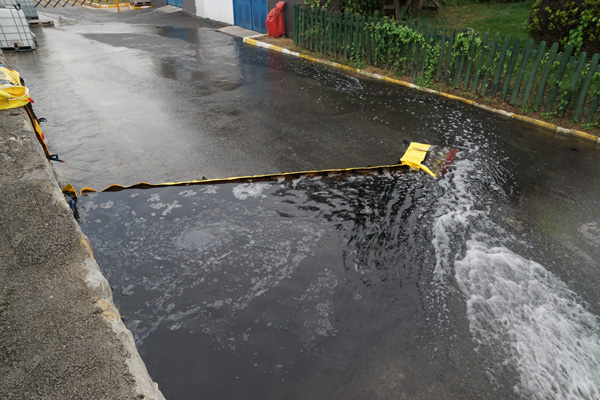

SERIE WL-06: a pocket barrier for emergency deviations. Efficient and incredibly simple! WEGDE-Bag ©: a sealing wedge to be placed in line with the openings to limit leaks.

Aluminium barriers

We pair our Water-Gate protection devices with the best aluminium solutions: narrow openings, support points for flexible barriers.

Balloon plugs

If the risk to underground networks is not dealt with, surface protection will be inadequate. MegaSecur.Europe studies the networks of the site to be protected and provides a solution tailored to each situation.

Pumps and motor pumps

No mobile flood protection system is totally watertight. We provide pumping solutions to collect water that has seeped through and discharge it beyond the dam: self-priming motor pumps or submersible pumps coupled with generators.
